Thin film NTC thermistors have excellent stability and reliability, good insulation, high resistance accuracy, and are favored by customers.
● Main technical parameters
Rated zero power resistance value (R25): 5K Ω~500K Ω
◎ R25 allowable deviation: ± 1%, ± 2%, ± 3%, ± 5%
◎ B value range (B25/50): 3270~4750K;
◎ B value allowable deviation (marked as needed): ± 1%, ± 2%
◎ Dissipation coefficient: 0.8mW/℃ (in still air)
◎ Thermal time constant: ≤ 5S (in still air)
◎ Working temperature range: -40 ℃~+125 ℃
Rated power: ≤ 50mW

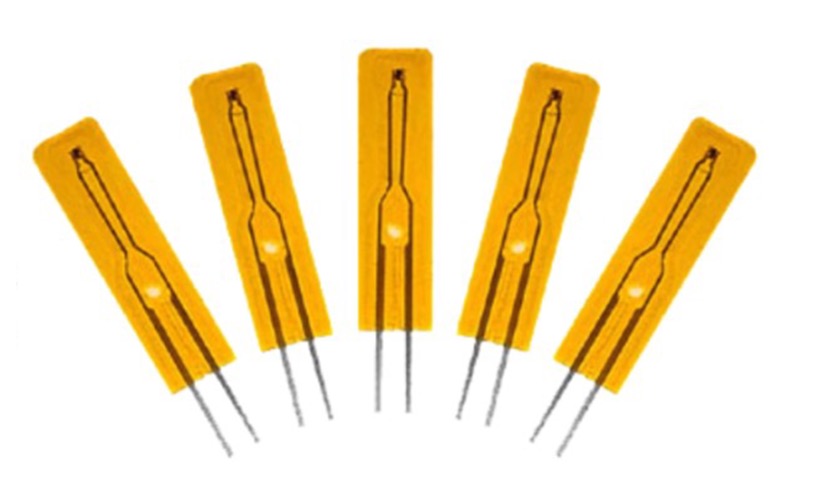

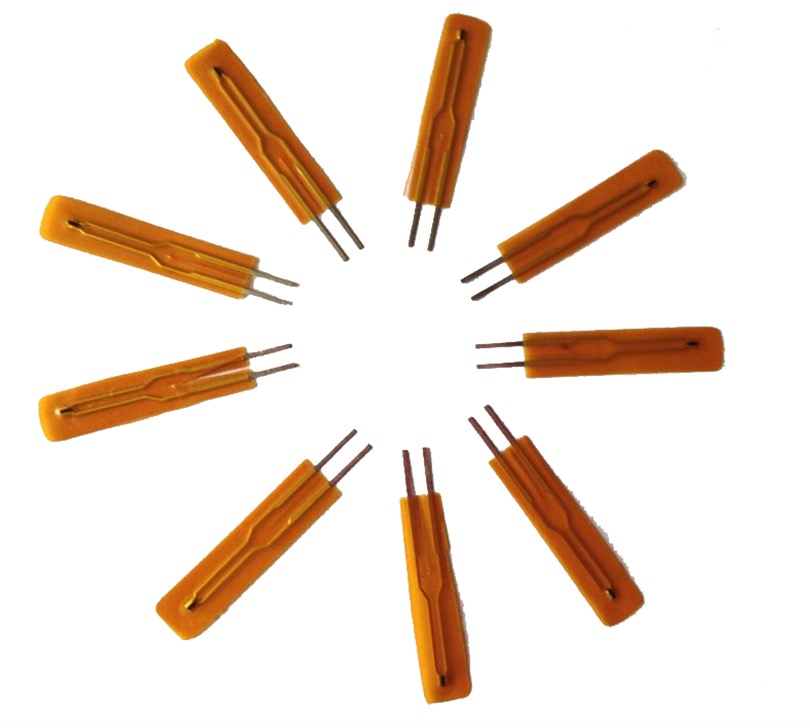

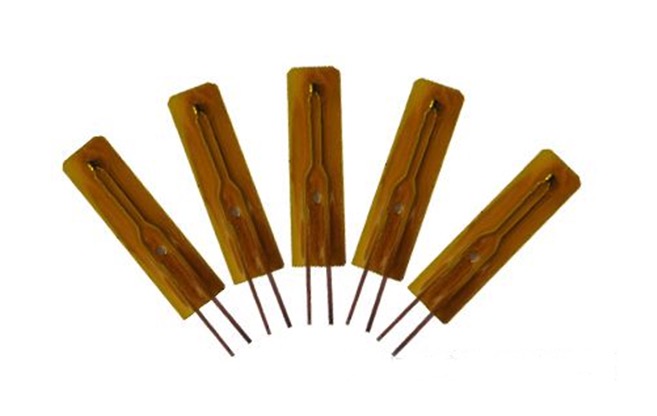

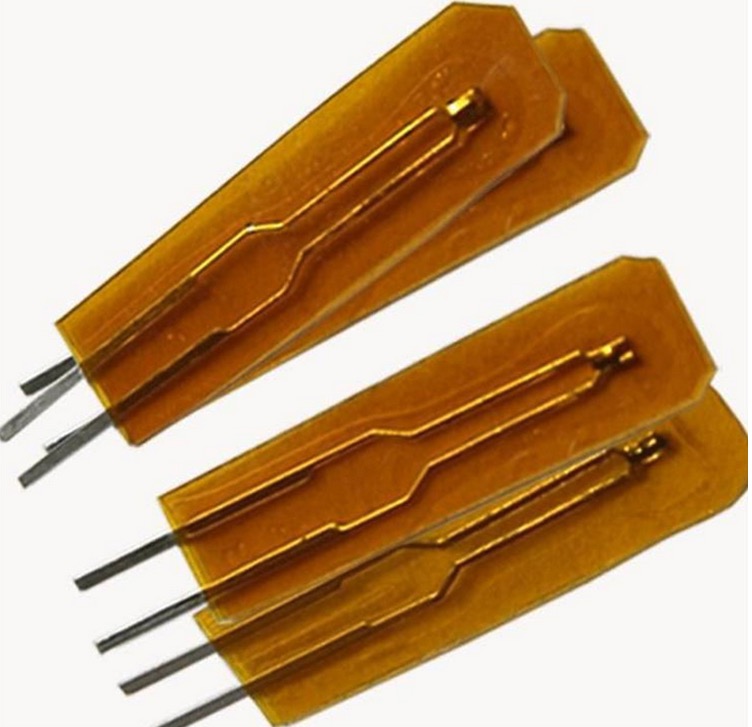

MF55 series thin film temperature measuring NTC thermistor
R25 (Ω): 5K~500K
[Product features] High sensitivity, fast thermal response, good stability, and high reliability
[Product uses] Computers, printers, and household appliances
Questions and Answers:
Q:Can thin film temperature measuring NTC thermistors of the MF55 series be reflow soldered?
A:Sure, but don’t touch the film to avoid scalding and deformation.

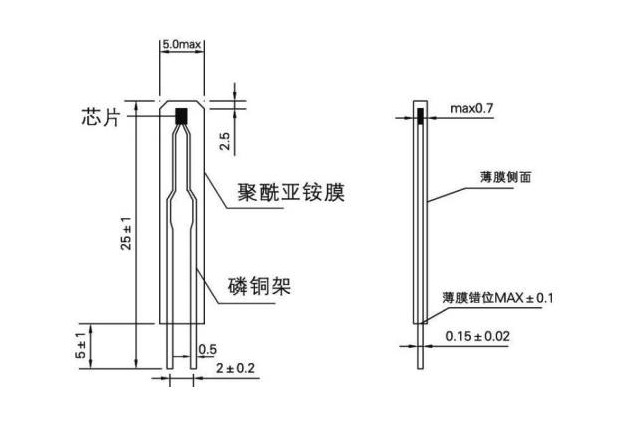

Q:What is the material of the film on the thin film temperature sensing thermistor mf55?
A:The material of the film is polyimide film. The MF55 film temperature measuring NTC thermistor is a small volume thin NTC thermistor produced using new materials and processes. It has the advantages of accurate accuracy and rapid response, safe use, small volume, light weight, sturdy structure, and easy automation installation.
