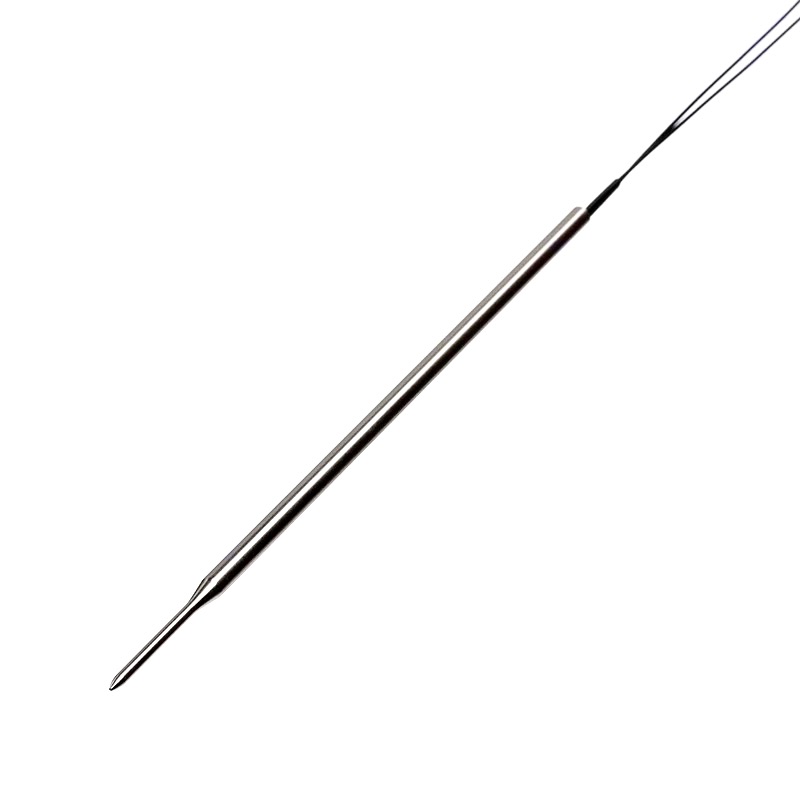

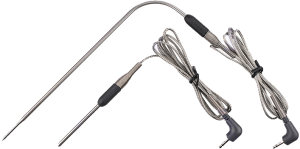

Thermometer Sensor Probe
This series of temperature sensors use high thermal conductivity thermal paste. Various plastic shafts can be designed according to the customer’s structure, which is convenient for customers to install according to the structure. According to the temperature measurement speed requirements, various stainless steel tube tip sizes can be customized, the smallest can be Φ1.5mm, and various characteristic parameters can be customized or matched according to customer needs. This series of products have stable and reliable performance and high-temperature measurement sensitivity.
The Features of Thermometer Probe
- Size can be customized according to the installation structure.
- High-temperature measurement sensitivity, from room temperature to 100 degrees water within 3 seconds.
- Resistance value and B value have high precision, good consistency, and stable performance.
- High-temperature resistance, wide application range.

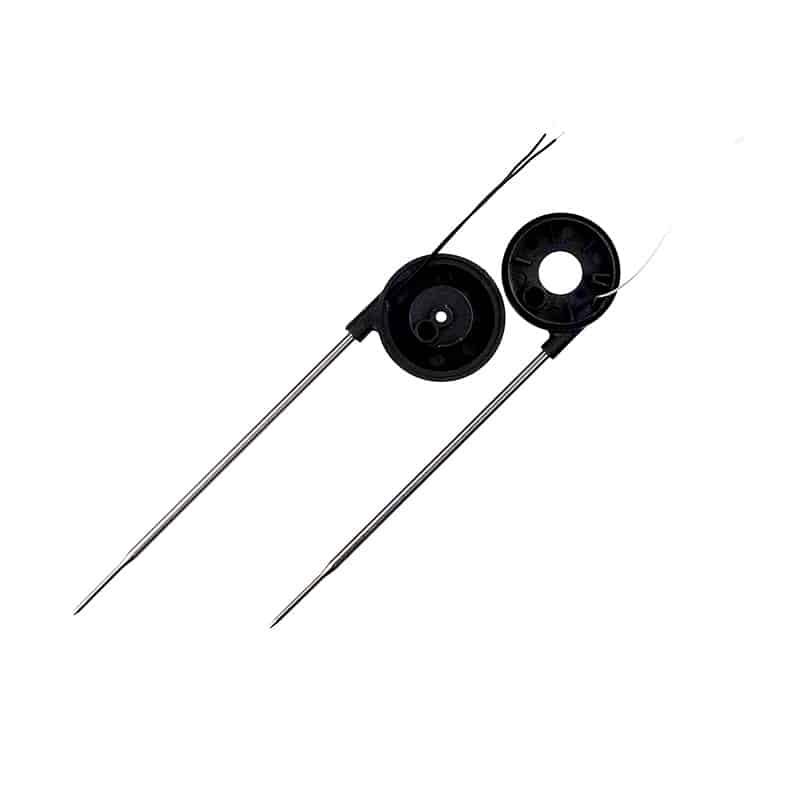

- Plastic shafts of different materials can be designed according to customer needs
- Food grade SS304
The Characteristic Parameters of Thermometer Probe
| Recommend | R25℃=100KΩ±1% B25/50℃=3950K±1% R25℃=98.63KΩ±1% B25/85℃=4066K±1% R200℃=1KΩ±3% B100/200℃=4300K±2% |
|---|---|
| Working Temperature range | -50℃～+300℃ |
| Thermal Time constant | MAX.4sec |
| Wire | Teflon wire |
| Support | OEM, ODM order |
The Applications of Thermometer Probe
Food thermometers, milk thermometers, and food probes.
The detection significance of Thermometer Probe
The suitable temperature for bacterial growth is in the range of 10-60°C. Therefore, the storage temperature of food should be controlled below 10°C. Food processing should be cooked thoroughly, and its core temperature should be above 70°C and kept for a certain period of time to kill bacteria. Food that is more than 2 hours after cooking and before consumption should be stored at a temperature higher than 60°C or lower than 10°C. Cooked products that need to be refrigerated should be refrigerated between 0 and 10°C after cooling.
