Product Information：

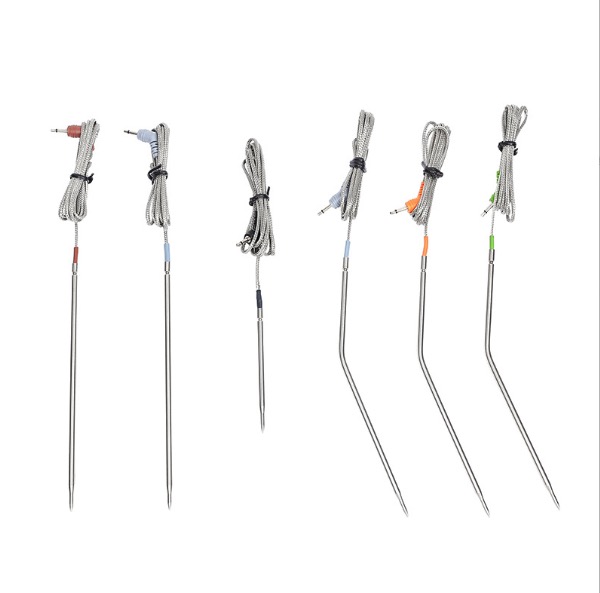

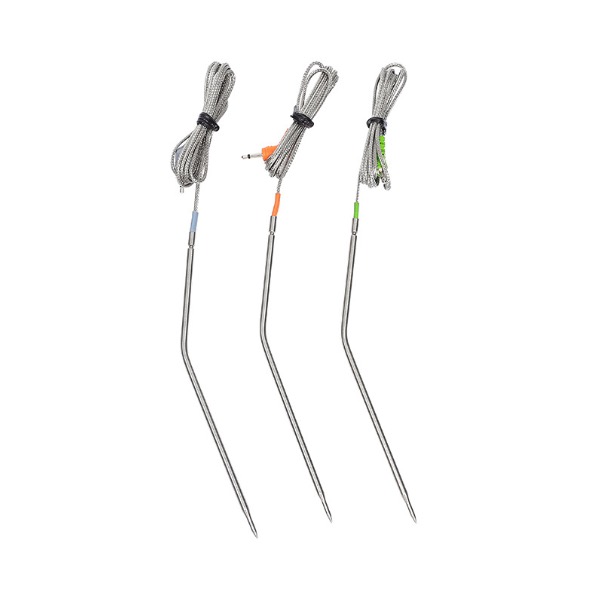

Type:temperature sensor,temperature probe,thermocouple temperaturesensor,Platinum resistance temperaturesensor(PT100,PT1000)
Application:measuring temperature.It can be used as food electronic Thermometer.temperatureprobe electricfork.Bluetoothelectricforkinoven.bakingsheet.outdoor BBo.etc.
Component: the products take these nsitive component as a core for measuring temperature.The food-grade, need like 304 stainless steel tube is used as the connection with food. the wire is made of high-temperature resistance wire and wrapped with 304 stainless steel mesh wire or silicone wire，the end of the product use customized molded pastic plug.
Certiication:the products have passed the test of ROHS,REACH,CAProp65.The 304 stainless steel tube and 304 stainless steel which connected with food.has passed the food-grade test of LFGB and FDA.
Customization：Different products can be made according to the customer’s request.We can make higher level products such as waterproof IPX7 which can be washed in the washing machine for reusing.
Temperature resistance range：-50~380°C、
Resistance：R100=3.3KΩ±2.5% B0/100=3970K, R25=100kΩ±1% B25/50=3950K，R25=98.63KΩ±1% R100=6.282KΩ B25/85=4066K，
R25=200KΩ±2% B25/50=4200K, R25=231.5KΩ±1% R100=13.06KΩ B25/85=4170K，
PT100,A grade，B grade or PT1000，A grade，B grade are available
Information for customization
Providing information ot product resistance. B value and accuracy. which you can reter to the above information of resistance, or contact our salesmen directly for detail information.
- Product application, working-temperature range, grade of waterproof;
- Wire dimension and the temperature resistance of 250°C,300°C and 380°C,stainless steel wire meshwith single core or double core, silicone wire and mica wire, etc.
- Types and specifications of plug:providing 2.5mm、3.5mm straight and curved plug with mono channelor aualchannelorother customized
- Types and specifications of plug:providing 2.5mm、3.5mm straight and curved plug with mono channelor aualchannelorother customized
- Types and specifications of plug:providing 2.5mm、3.5mm straight and curved plug with mono channelor aualchannelorother customized
- DImensions of stainless steel tube: length, diameter and thickness, for diameter providing choices ot¢3.8mm.$4.0mm.¢4.2mm ¢4.6mm etc。Crattsmanship for tip shrinkage (length and diameter for tip shrinkage).
- Providing different choices for handle shape and colors for products and sets.
