The measurement and control of low-temperature refrigerators and freezers make extensive use of packaging technology, such as TPE injection molding. Products made from TPE injection molding exhibit exceptional cold resistance, moisture-proof and waterproof functionality, high reliability, and a minimal annual drift rate of cold and heat shock resistance.

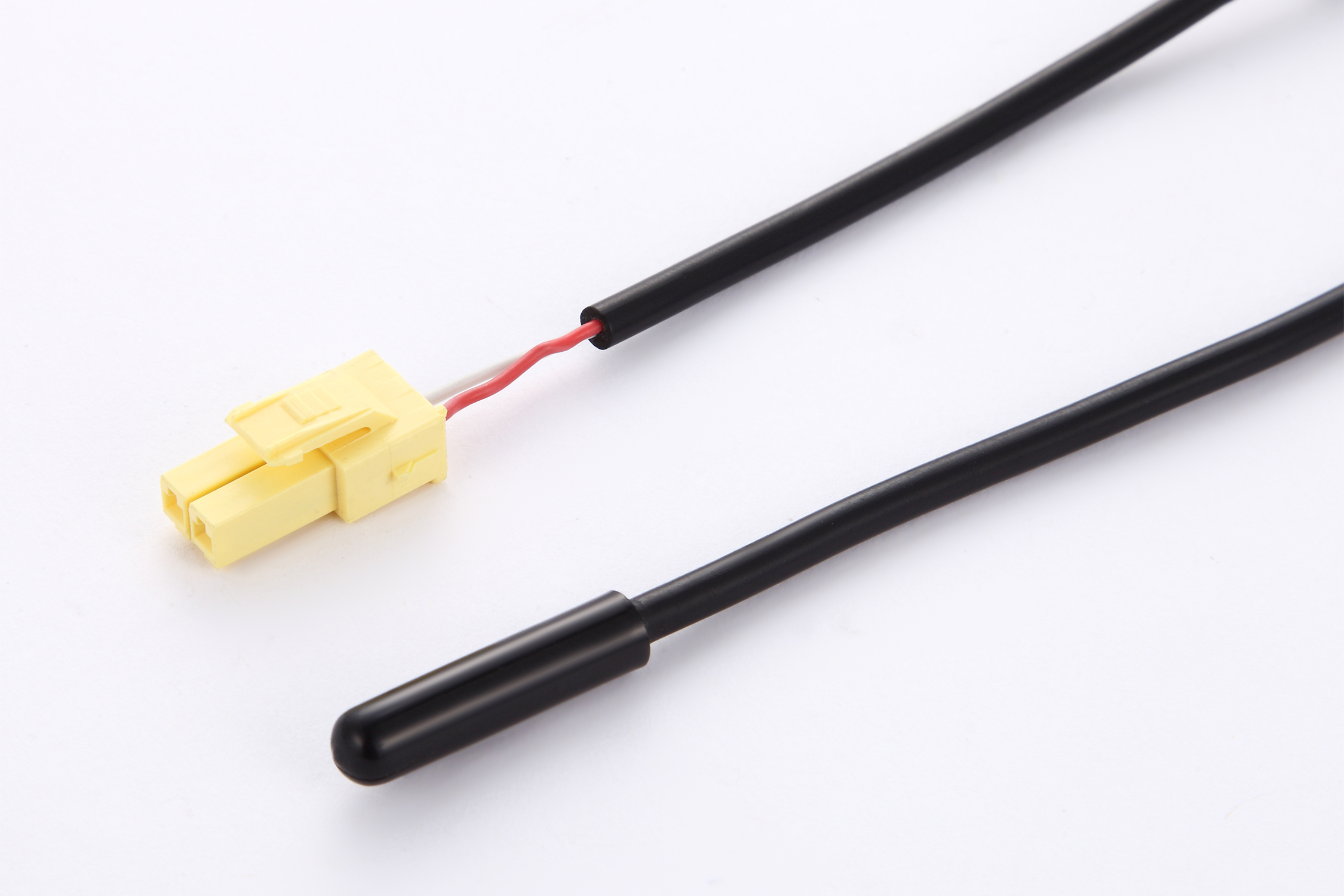

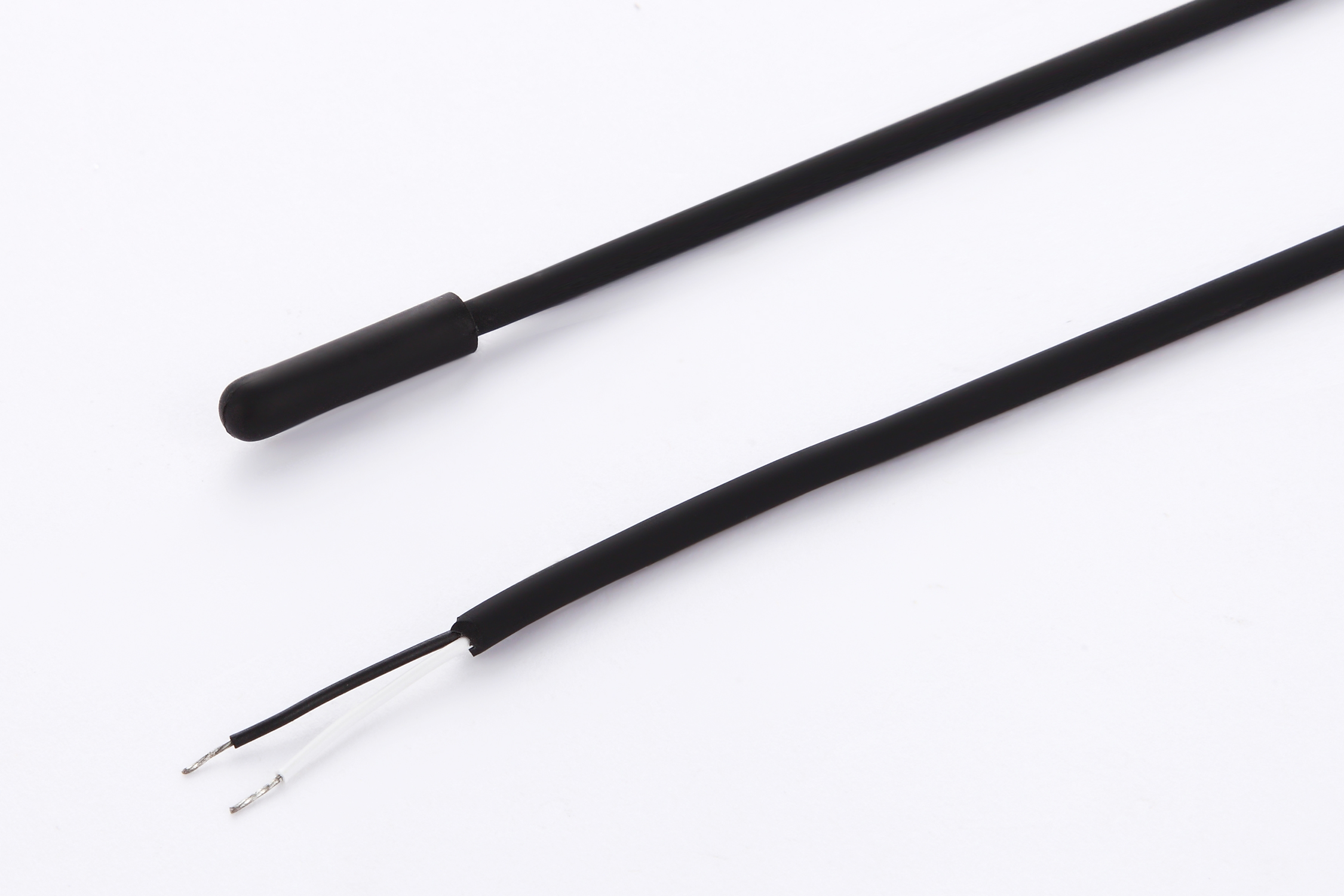

TPE Features of TPR IP67 Temperature Sensor
- The installation is simple and convenient, and the size can be customized according to the installation structure
- Resistance value and B value have high precision, good consistency, and stable performance
- Excellent moisture resistance, low-temperature resistance, voltage resistance, and insulation performance;
- IP67 waterproof grade
TPE Advantages of TPE IP67 Temperature Sensor
TPE Temperature Sensor uses glass-encapsulated NTC thermistors, and uses double-layer sealing technology to encapsulate ABS material shells. It has good insulation and sealing properties, mechanical impact resistance, bending resistance, good stability, and high reliability. Secondly, we use waterproof epoxy resin as filling, and the temperature sensor can run in the refrigeration system with high precision to achieve better refrigeration effect. The temperature sensor of the refrigerator is built into the thermostat inside the box, which can obtain the temperature inside the box with high precision. Thereby better guarantee the quality of stored food.
TPE Characteristics of TPE IP67 Temperature Sensor
| Recommend | R25℃=10KΩ±1% ，B25/85℃=3435K±1% R0℃=16.33KΩ±2% ，B25/100℃ =3980K±1.5% R25℃=100KΩ±1% ，B25/85℃=4066K±1% |
|---|---|
| Working temperature range | -30℃～+80℃ or -30℃～+100℃ or -30℃～+150℃ |
| Thermal-time constant | MAX.15sec |
| Insulation voltage | 1800VAC,2sec |
| Insulation Resistance | 500VDC ≥100MΩ |
| Wire | TPE wire |
| Connector | PH,XH,SM,5264 |
| Support | OEM or ODM order |
The Application of TPE IP67 Temperature Sensor
Refrigerator, freezer, water dispenser
